Mosconi Pro 5|30
5 channel high performance amplifier
5 channel amplifier
Class AB technology with Class D mono output
Asymmetrical power output

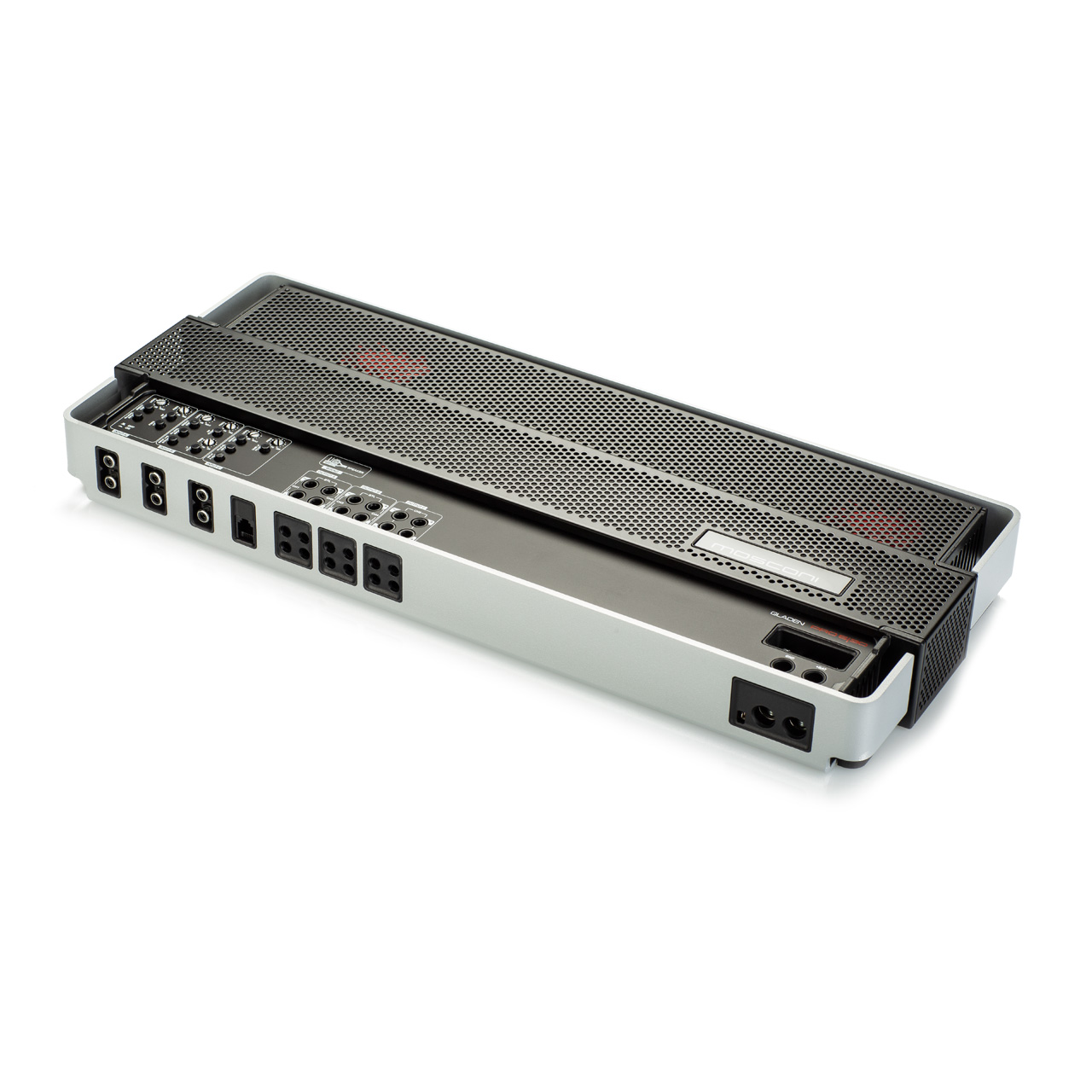

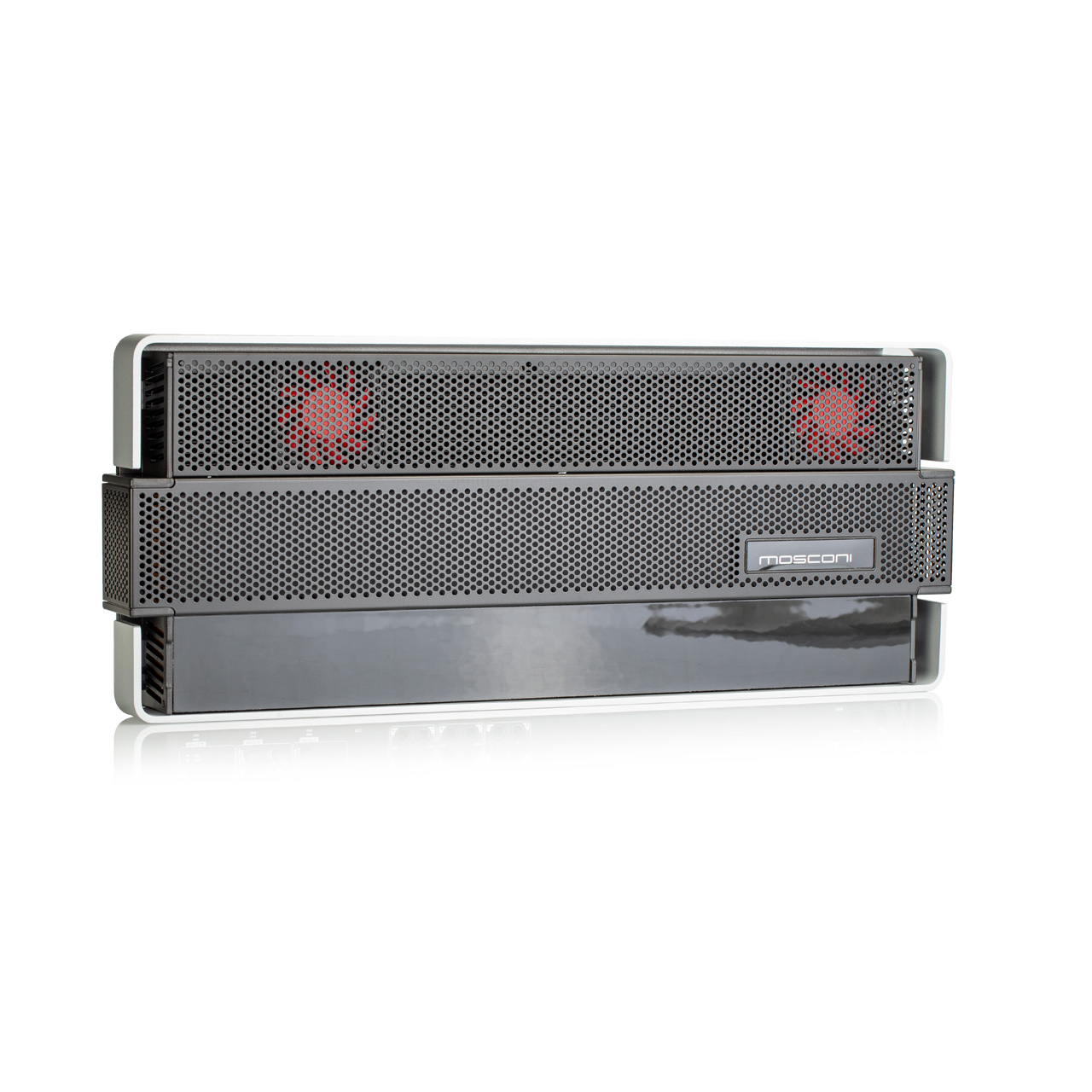

The MOSCONI PRO 5|30 already signals the high-end claim with its design: With rounded aluminum edges and contrasting black perforated sheet insert with illuminated logo, the amplifier looks very noble. The eye finds numerous steps and recesses on which the gaze lingers without the whole thing looking jagged. The Mosconi Pro 5|30 is a hybrid amplifier in a class of its own. With it, extensive system configurations can be realized. With its asymmetrical power distribution, it is, in conjunction with a digital sound processor, perfectly created for active operation.
Direct DSP (bypassing all preamplifier circuits)
High level / low level selectable input
Autosense (only in BTL mode)
RTC - Allows volume regulation by remote control (optional)
Power supply and temperature management controlled by microprocessor
Output Power
Output power @ 4Ω: 2 x 95 + 2 x 185 + 1 x 660 Watts
Output power @ 2Ω: 2 x 150 + 2 x 290 + 1 x 1030 Watts
Specifications
Input sensitivity:
0.35 V ÷ 12 V (5.3 V in DDSP mode) [CH 1/2/3/4]
0.14 V ÷ 5.9 V (3.1 V in DDSP mode) [CH 5]
Dimensions: 500 x 205 x 55 mm
Weight: 5,4 kg
Crossover:
CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
CH 3/4 = HP: 50 ÷ 200 Hz & LP: 430 ÷ 5000 Hz
CH 5 = LP: 43 ÷ 200 Hz
Signal to Noise Ratio: > 83 dBA (ref: 1 Watt into 4 Ohm)
